One of the most fascinating things about silver-based photography is that the material forming the image is, chemically speaking, surprisingly simple. Whether we are looking at the dense black areas of a conventional negative or the brilliant highlights of certain direct-positive processes, much of what we see is ultimately metallic silver. Yet the same element can appear deep black in one photograph and almost white or silvery in another. Understanding why brings us into a particularly interesting part of photographic chemistry, where chemistry, particle growth and optics all begin to overlap.

Why is silver black in the first place?

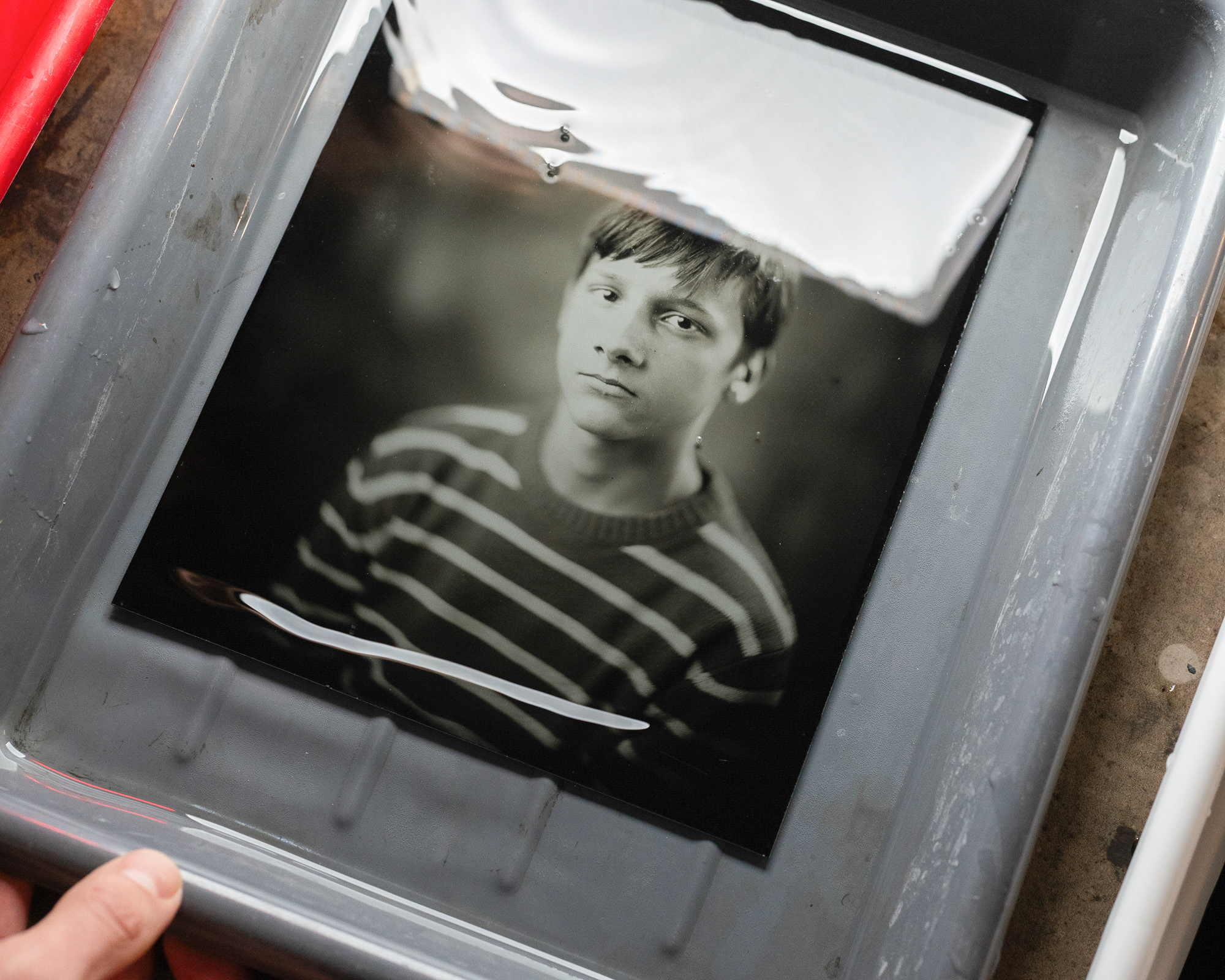

A photographic emulsion starts with microscopic crystals of silver halide typically silver bromide, silver chloride, silver iodide, or a mixture of these suspended in gelatin. When light reaches a silver-halide crystal it causes a series of events within that crystal that eventually produces extremely small clusters of metallic silver atoms. These clusters form the latent image, but they are far too small to see. Development amplifies this tiny photochemical change: where a sufficient latent-image centre has formed, the developer reduces silver ions in the crystal to metallic silver, turning an invisible exposure into a visible image.

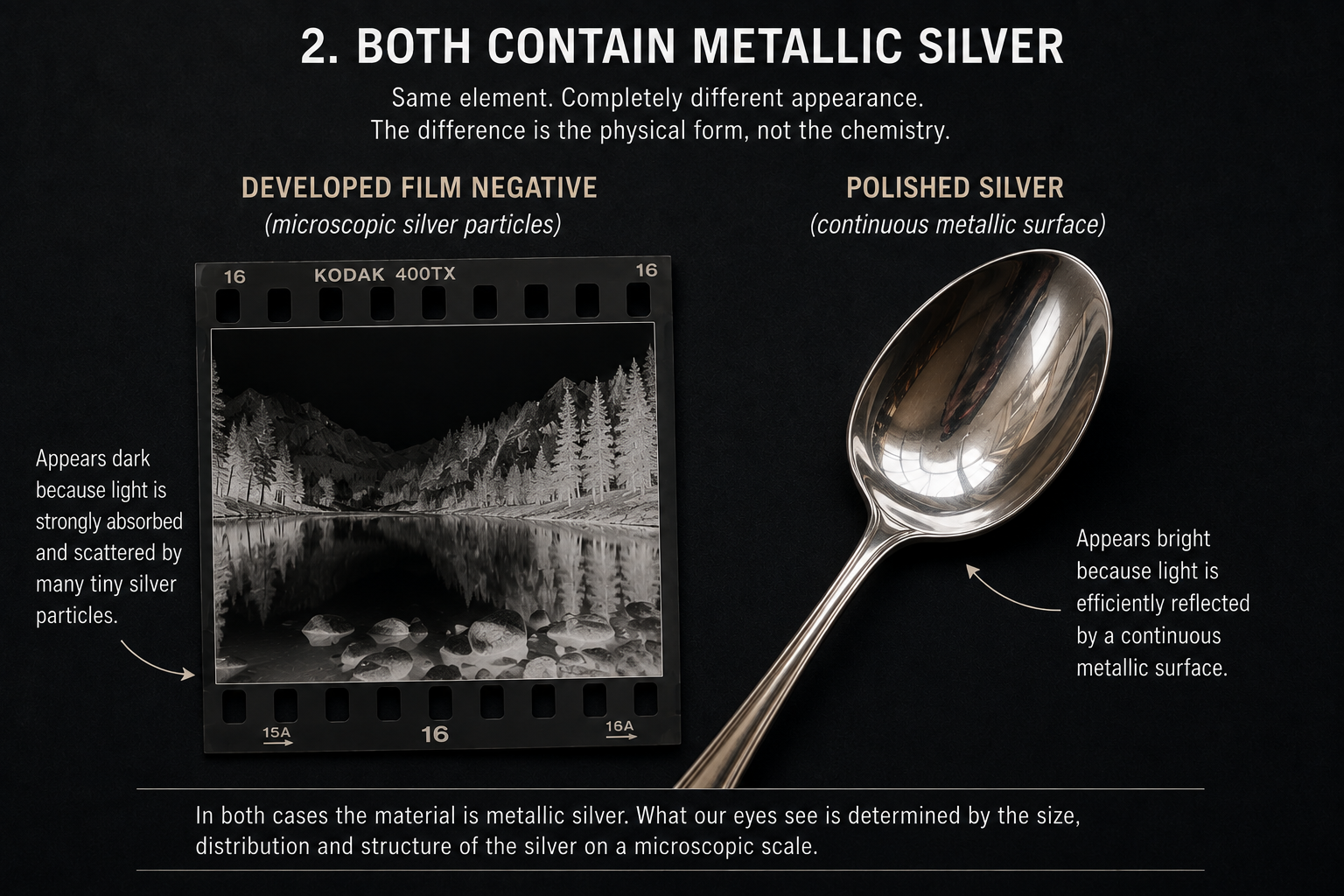

This immediately raises an interesting question. Metallic silver is a bright, reflective metal, so why is the silver in a normal photographic negative black? The answer is that the optical properties of a material depend not only on what it is made from, but also on its physical structure. A polished piece of silver consists of a relatively continuous metallic surface that reflects light efficiently, whereas photographic silver consists of enormous numbers of microscopic particles, filaments and aggregates distributed throughout the gelatin. In this finely divided form, the silver interacts strongly with visible light and a sufficiently dense accumulation therefore appears dark brown or black. The black part of a black-and-white negative is not a black pigment at all; it is metallic silver arranged on a microscopic scale in a form that happens to look black.

This is already an important idea for understanding photographic materials: knowing what something is made of does not necessarily tell us what colour it will appear to be. The dimensions and structure of the material matter enormously, particularly once we begin dealing with particles approaching the wavelength scale of visible light.

What changes when we introduce a complexing agent?

This distinction becomes especially interesting when complexing agents such as ammonia or thiocyanate enter the process. In the case of potassium or ammonium thiocyanate, it is primarily the thiocyanate ion, SCN⁻, that interests us. These species can interact strongly with silver ions and change the equilibrium between silver locked inside a silver-halide crystal and silver species present in the surrounding solution.

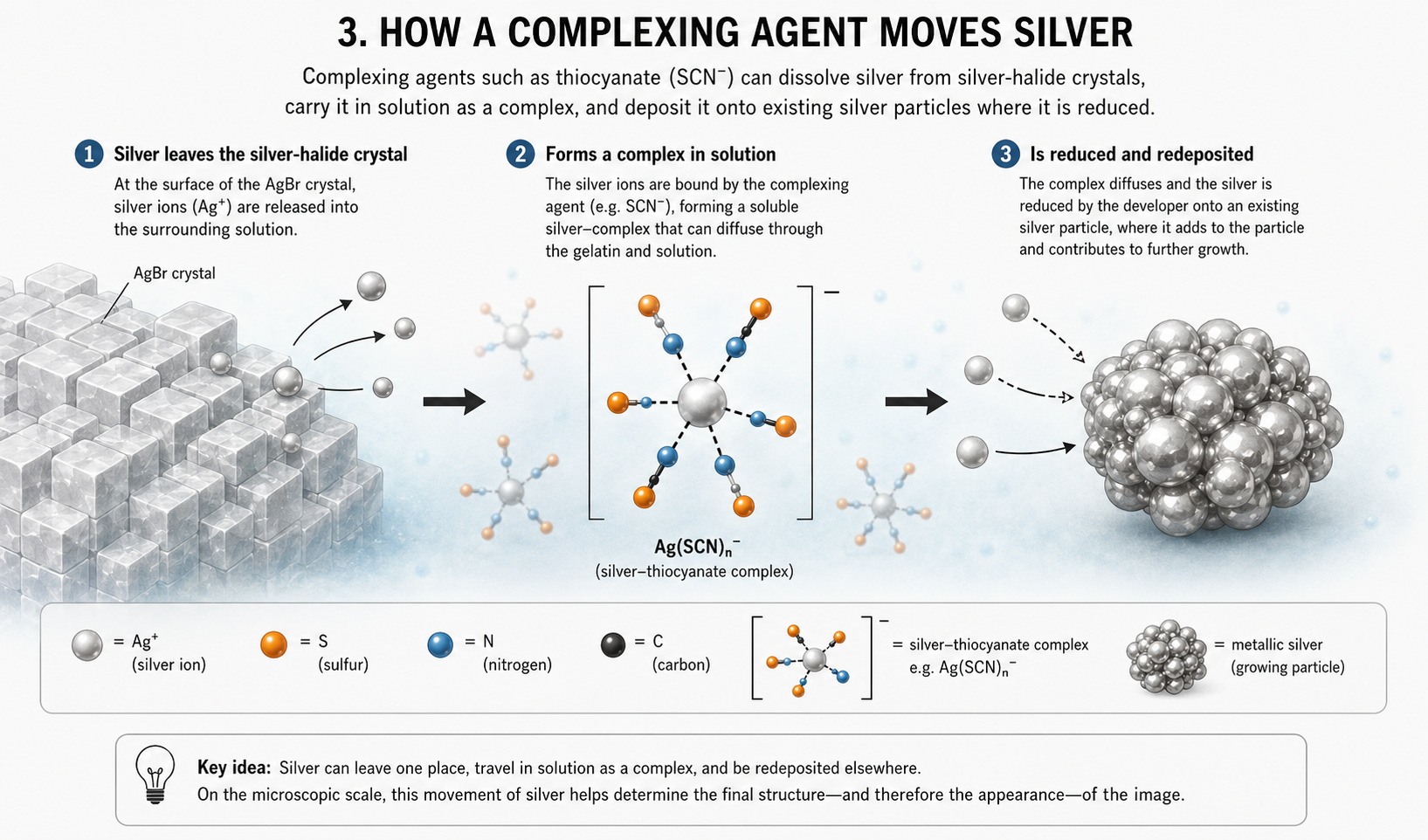

Silver halides are only sparingly soluble in ordinary water. When a suitable complexing agent is present, however, dissolved silver ions can be stabilised as soluble complexes. Removing free silver ions from the immediate equilibrium in this way can encourage additional silver to leave the silver-halide crystal. Suddenly the process is no longer only about reducing a crystal exactly where it sits: some silver can enter solution, become complexed, move through the microscopic environment of the emulsion and potentially contribute to metallic silver somewhere else.

This is closely related to the principles of physical development and solution physical development, where silver supplied through solution can be reduced onto existing silver nuclei. Instead of thinking only about which grains were exposed, we now also have to consider where silver is dissolving, how far silver-containing species can diffuse, where reduction is taking place and which existing particles provide favourable sites for further growth. On the scale of a darkroom tray this movement is unimaginably small, but on the scale of the emulsion it can profoundly change the structure of the finished image.

The positive isn’t actually white

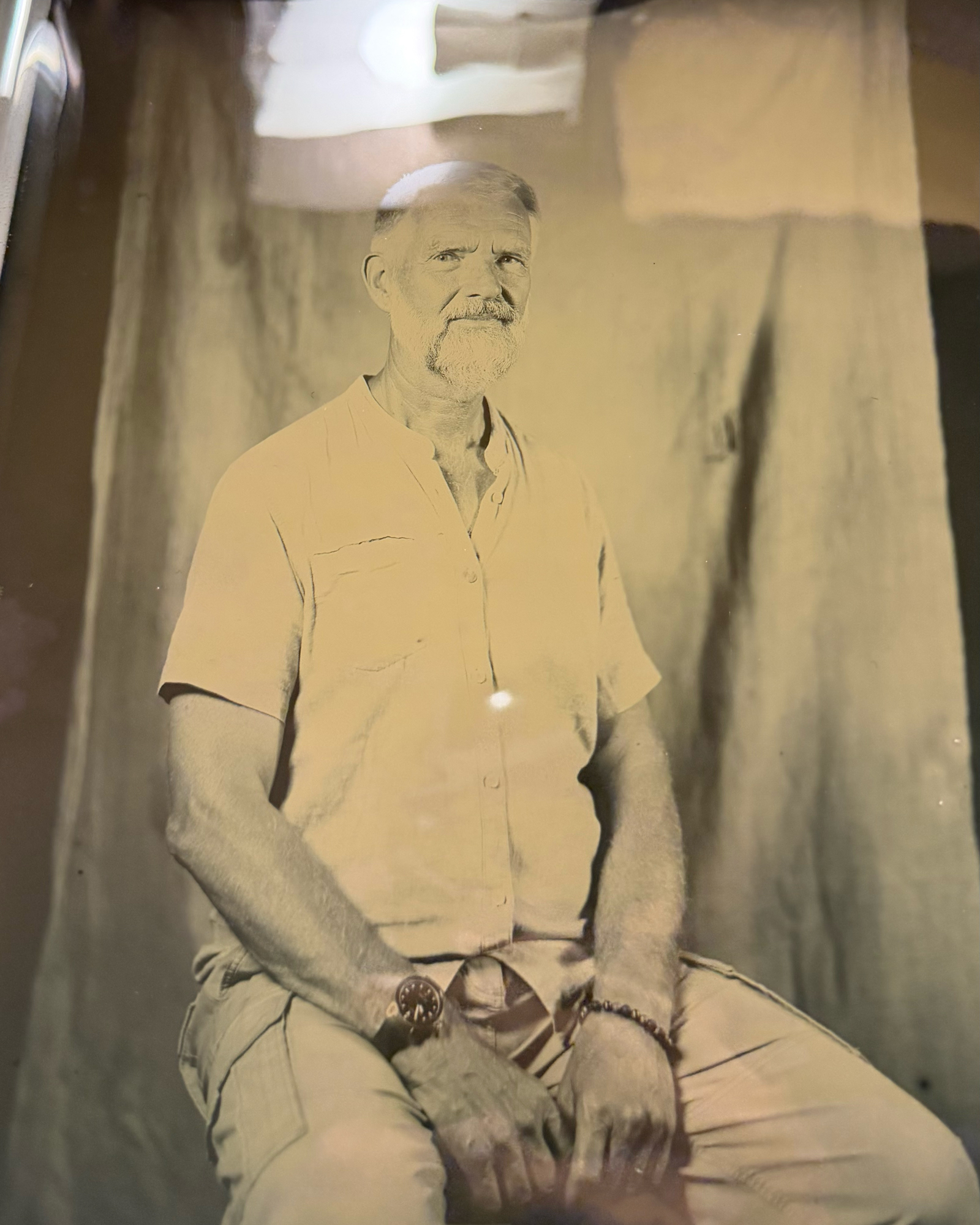

This brings us to perhaps the most surprising part of the process. When a positive image appears brilliantly white or silvery, it is tempting to assume that a white silver compound has formed. But that is not necessarily what we are seeing. The image can still consist of metallic silver; what has changed is the microscopic form of that silver and therefore the way it interacts with light.

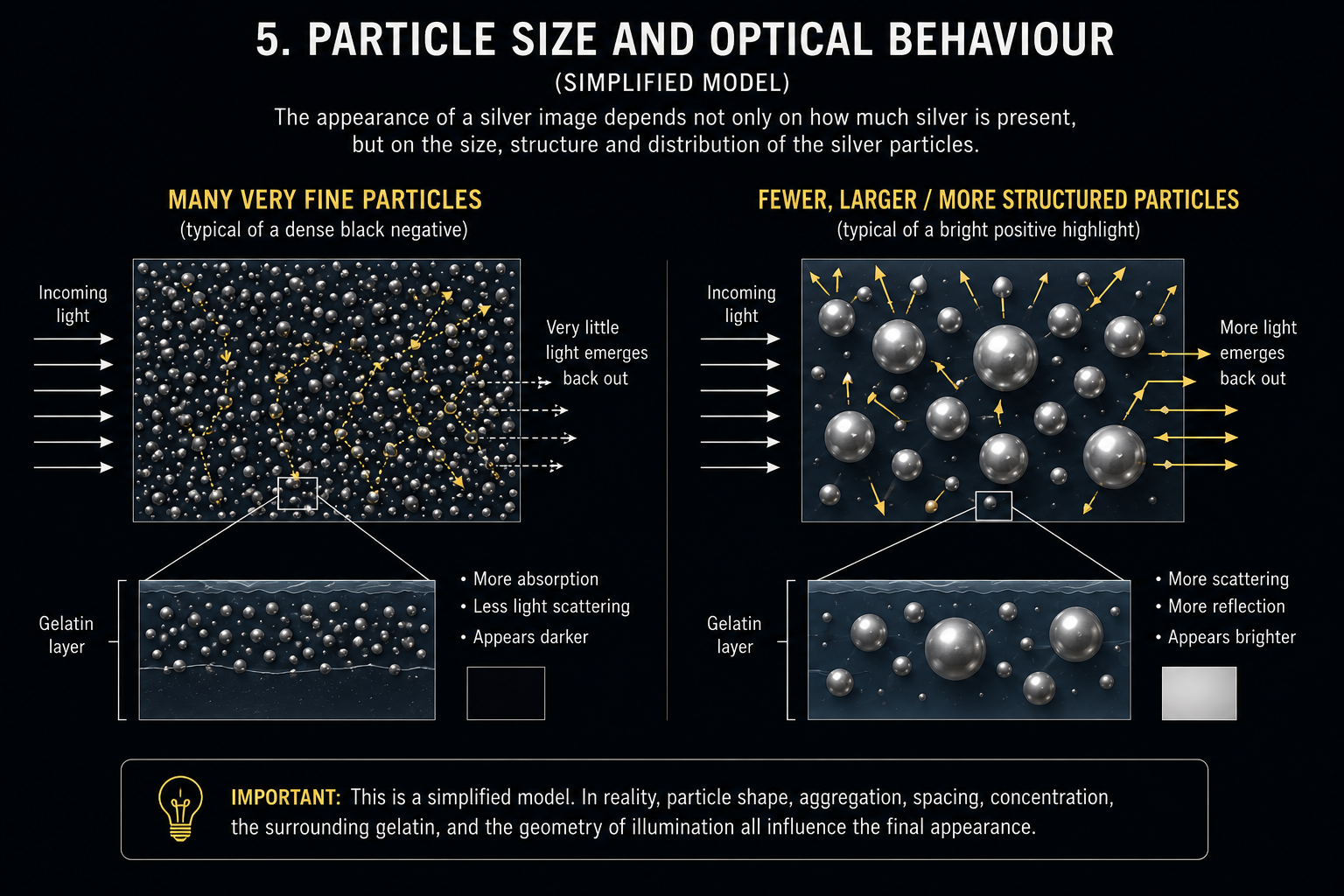

Very finely divided developed silver produces the familiar dark appearance of a conventional photographic image. If the chemistry instead encourages silver to accumulate onto fewer existing particles, those particles can grow and develop a different morphology. As their dimensions, shapes and aggregation change, so does their interaction with visible light. Larger or differently structured metallic particles can scatter and reflect considerably more light than the finely divided structures associated with a dense black negative, producing the bright, silvery appearance that we perceive as the positive image.

Particle size is therefore an extremely useful way to understand the effect, although it should not be treated as the only variable. Particle shape, aggregation, spacing and concentration, the surrounding gelatin and even the geometry of illumination contribute to the final appearance. The important principle is that the brightness of the positive is a structural and optical property of the silver image, not simply the “colour” of the substance forming it.

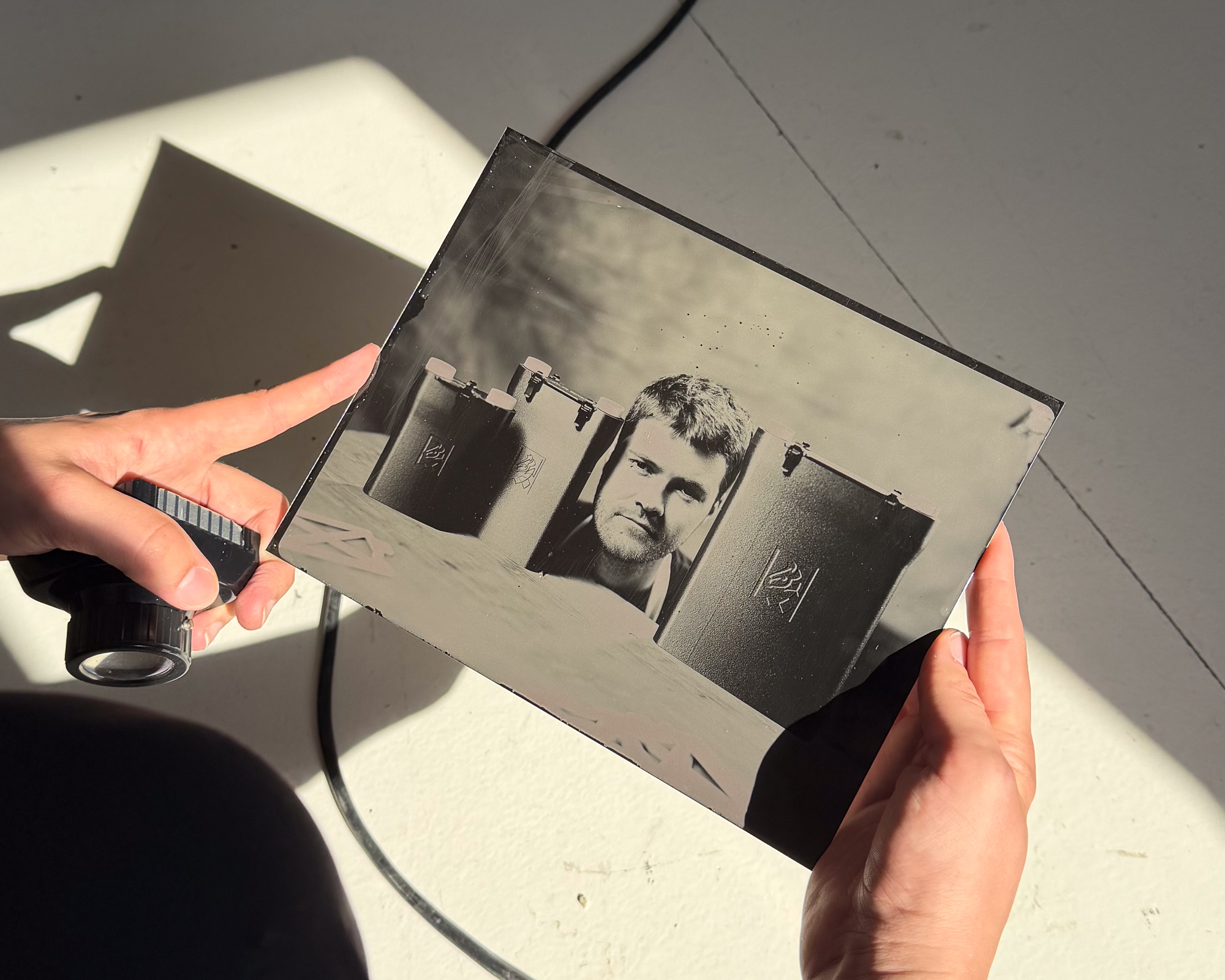

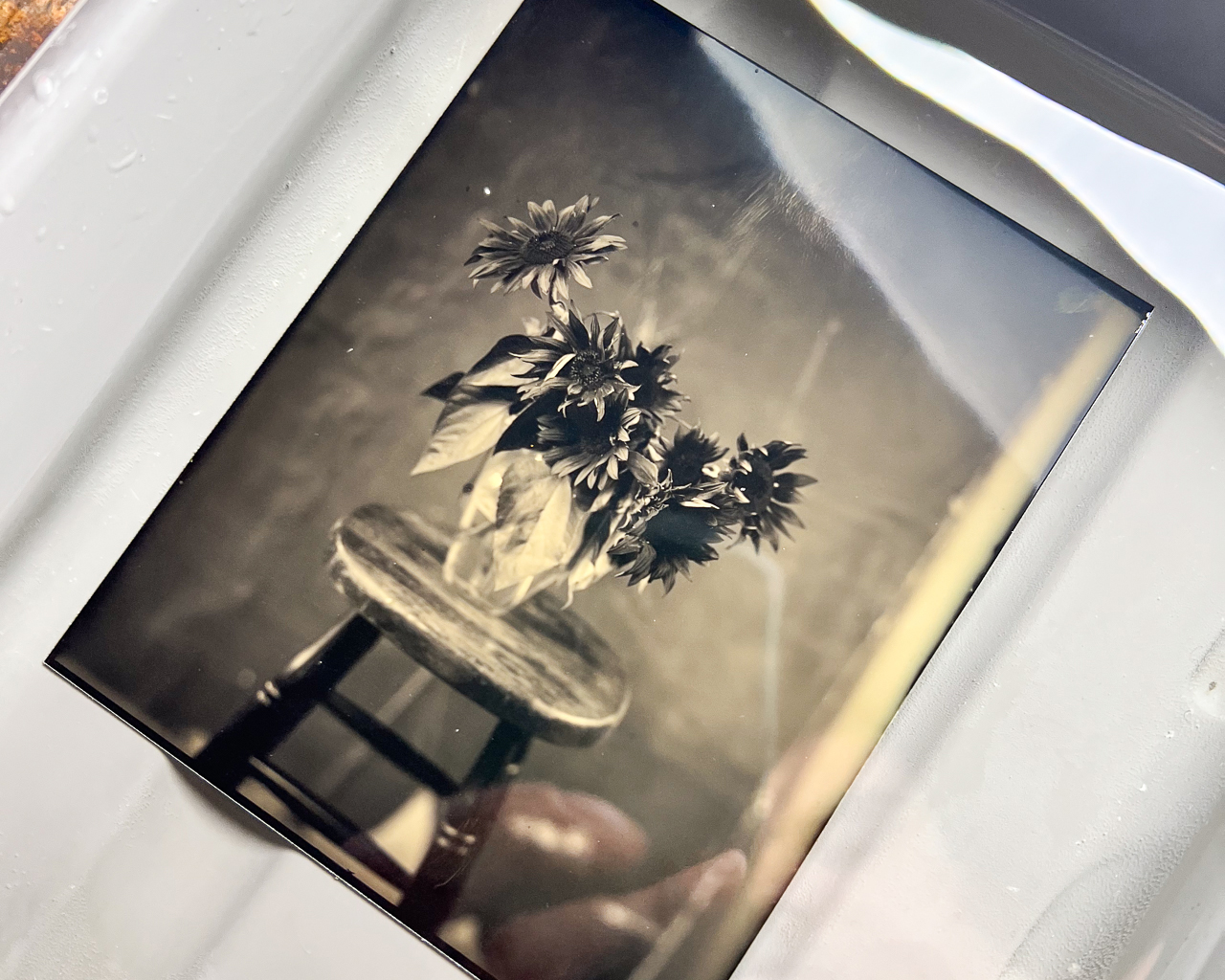

This also explains something that anyone handling these plates can observe directly. The brightest areas can change dramatically depending on the background and the angle of illumination. Against a dark background they may appear almost brilliantly white, while under another lighting angle the same areas become grey, metallic or obviously silvery. If we had simply created a conventional white pigment, this dependence on viewing conditions would be much less pronounced. Instead, we are seeing light scattered and reflected by microscopic metallic structures within the image layer.

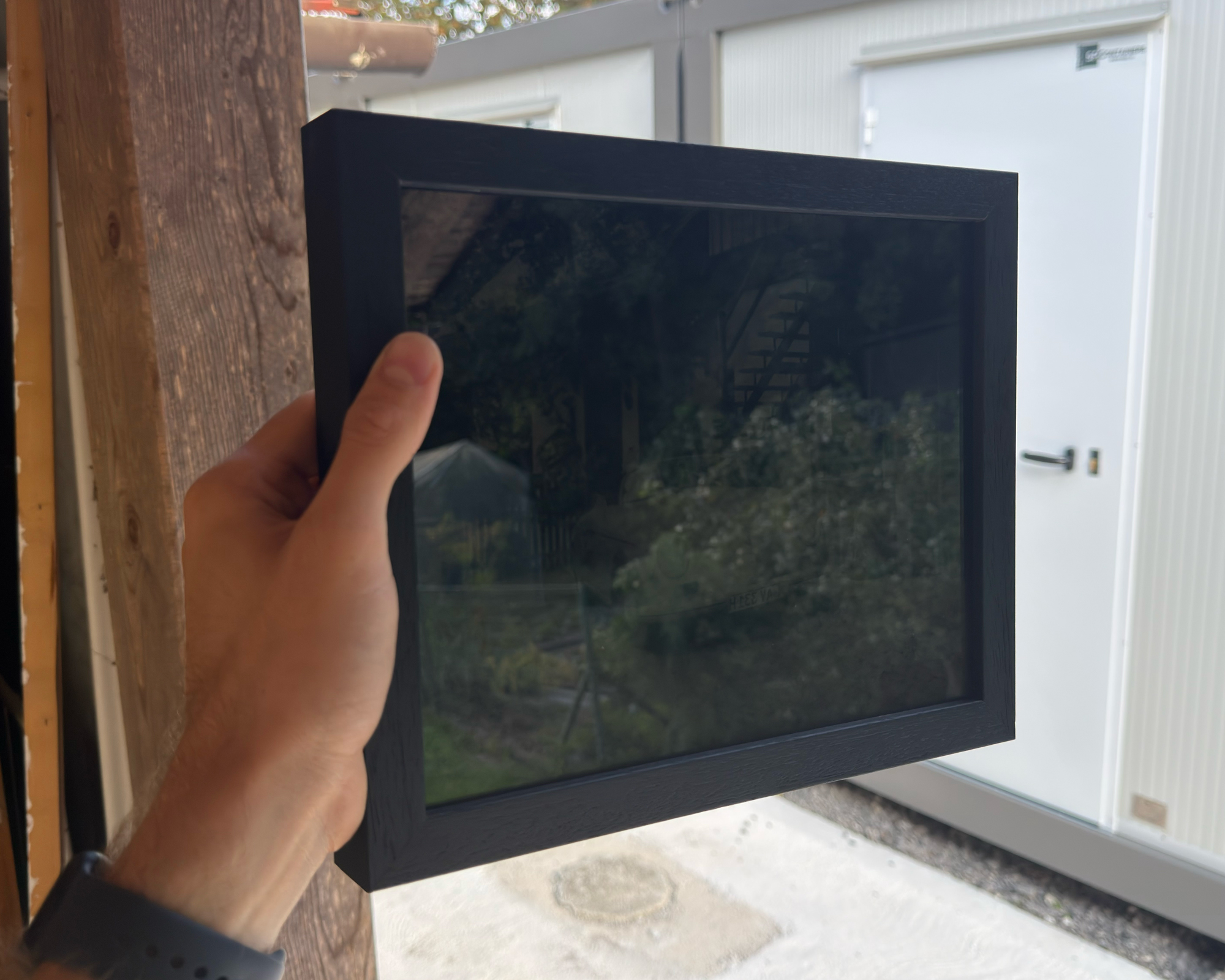

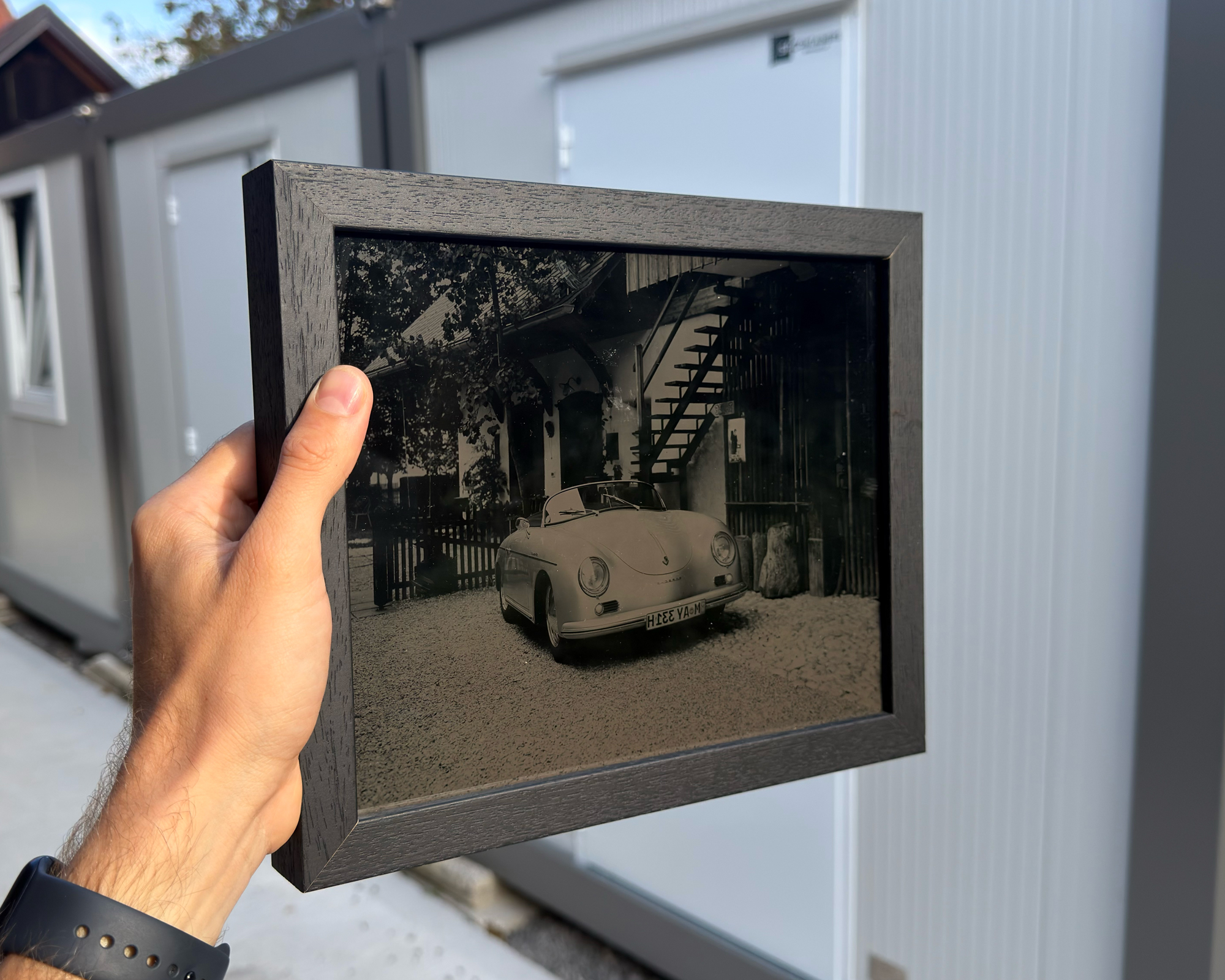

[PHOTO 4 — Very important comparison image: photograph the SAME positive plate under two lighting/viewing conditions. One should make the highlights appear almost white; the other should reveal their metallic/silvery character. Caption: “The material has not changed between these two photographs—only the way light interacts with it has.”]

Thiocyanate: a small addition with a large effect

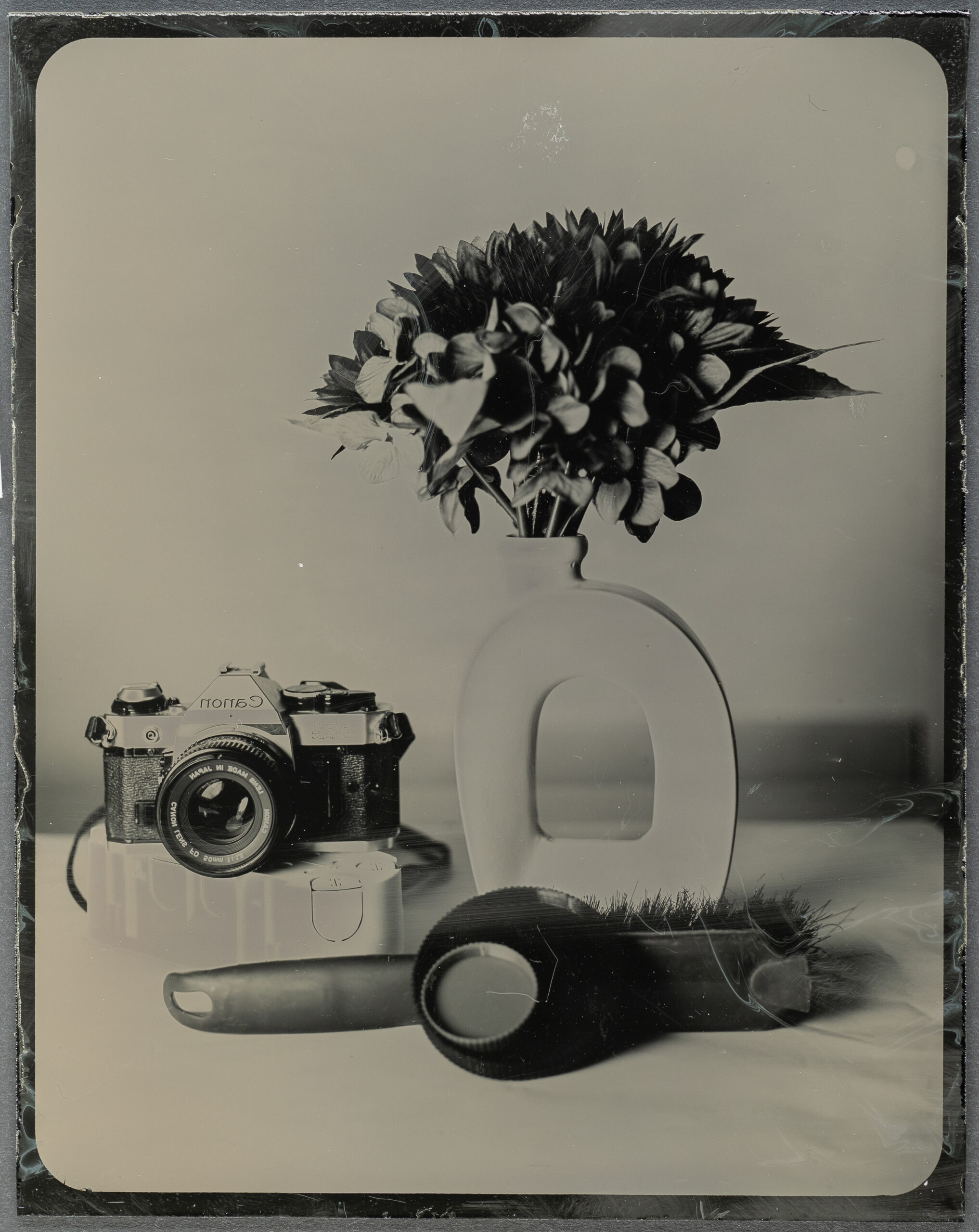

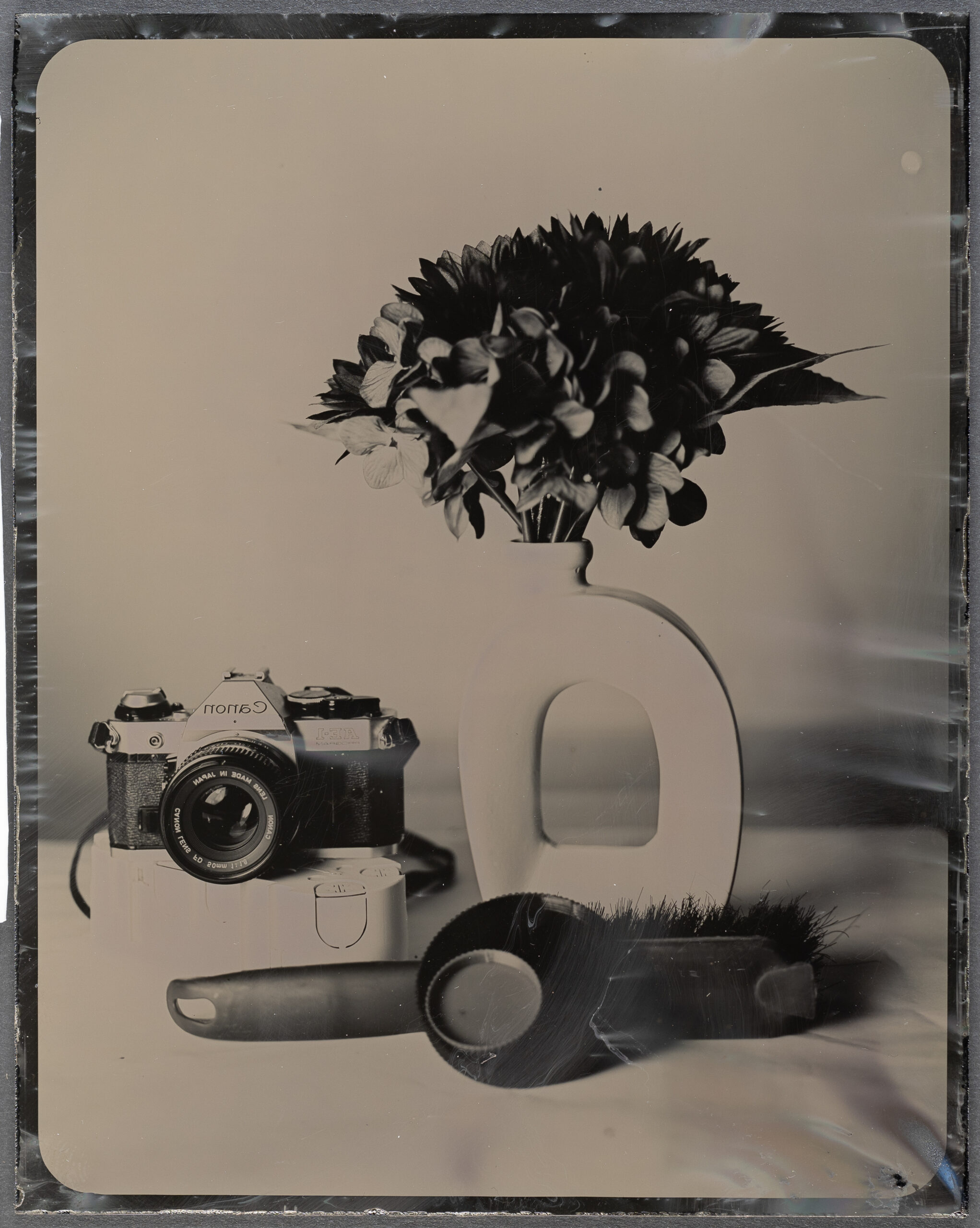

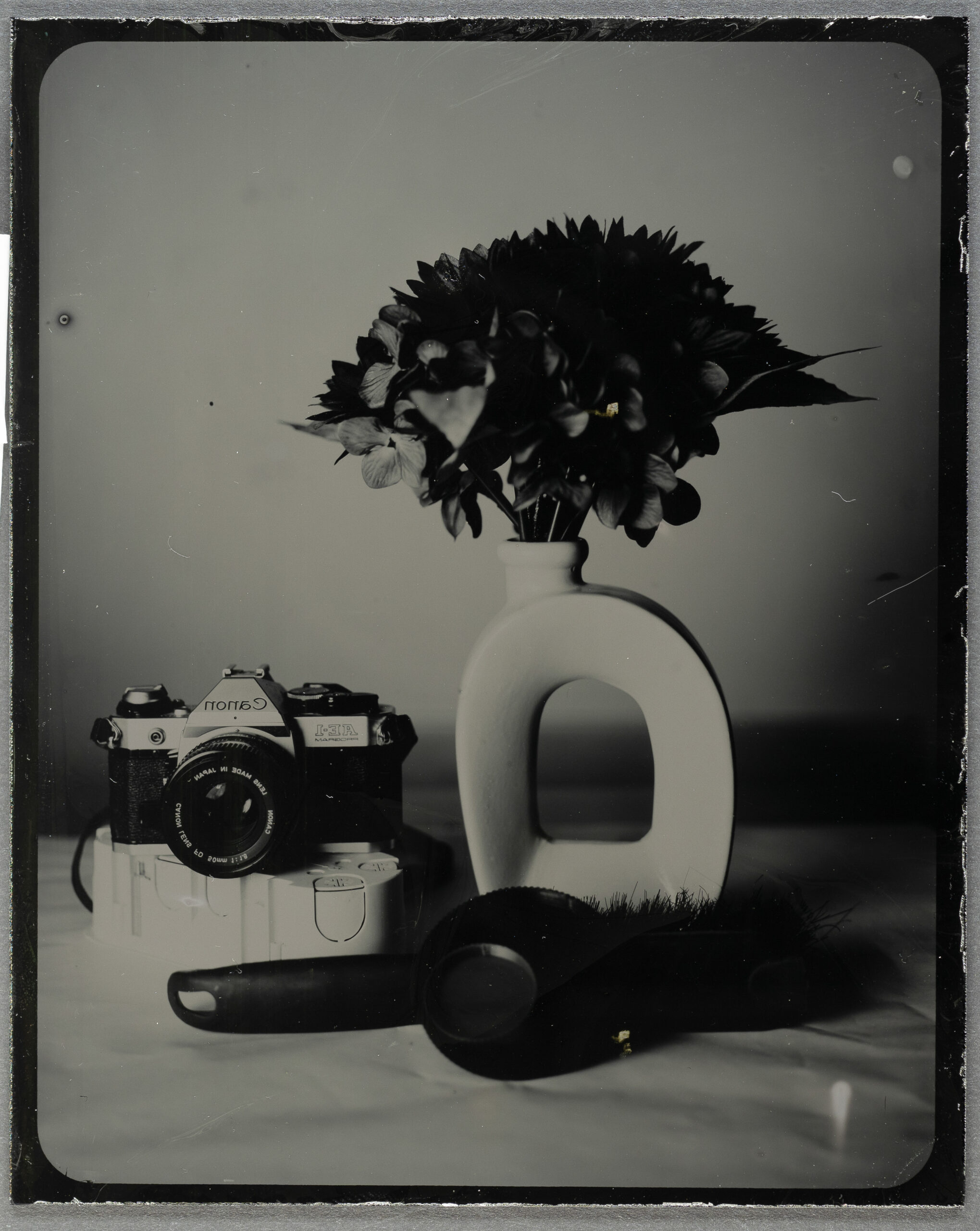

Thiocyanate is particularly interesting because relatively small changes in concentration can have disproportionately large effects on the resulting image. Potassium thiocyanate and ammonium thiocyanate both introduce the thiocyanate ion, SCN⁻, into the processing environment, where it can influence silver-halide dissolution, silver complexation and consequently the availability and movement of silver-containing species during development.

This does not mean that increasing the amount of thiocyanate simply produces a stronger version of the same effect. Too little complexing action may make relatively little difference, while an appropriate amount can strongly influence density, tone and particle growth. Beyond that region, the chemistry can begin moving in an undesirable direction, with excessive dissolution competing with the image-forming processes we actually want. Density may fall, fog can change, tones can shift and the overall character of the image may be quite different.

The complication and also the fun is that thiocyanate concentration is only one variable in a highly interconnected system. Temperature changes reaction and diffusion rates, developer composition determines how readily reduction occurs, exposure determines the distribution of latent-image centres, and the original silver-halide composition and grain structure affect both development and dissolution. Gelatin itself provides the microscopic environment through which these species move. Time, agitation and concentration interact with all of these factors, which is why changing what looks like a very small part of a formula can produce a surprisingly dramatic difference on the finished plate.

A useful way of thinking about the distinction is that conventional development primarily asks where silver should be reduced, while complexing chemistry adds another question: where can silver move, and where can it grow? On the molecular scale, the emulsion during development is an extraordinarily dynamic environment. Crystal surfaces are interacting with the developer, ions are entering and leaving solution, complexes are forming and diffusing, reduction is taking place and metallic particles are growing. What eventually looks like a static photograph is the frozen result of all of these microscopic processes.

This is still an ongoing experiment for us

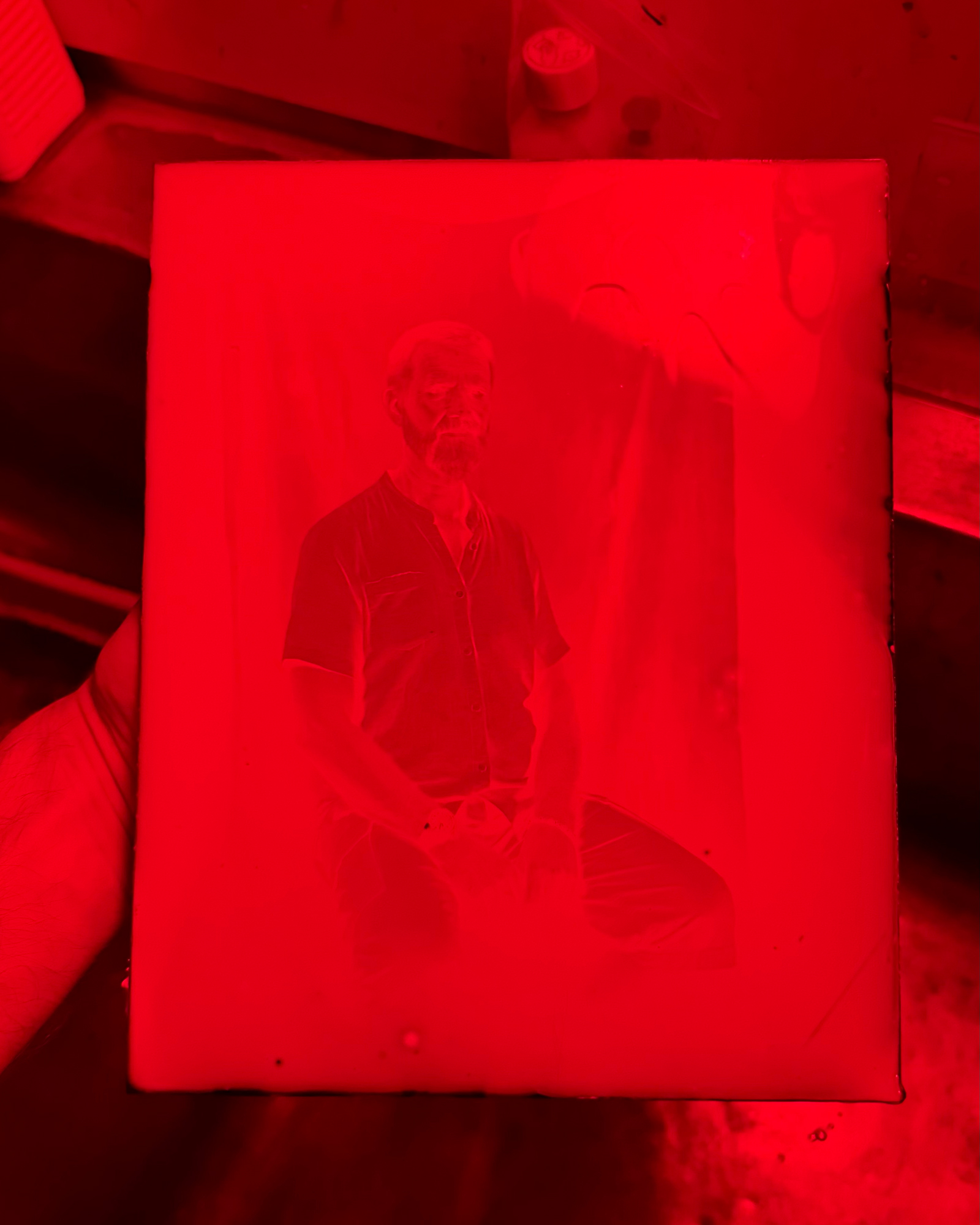

This is also where the subject becomes particularly exciting for us, because our work with complexing agents and direct-positive behaviour is very much an ongoing research project. We are experimenting with different complexing agents, concentrations, developer formulations, exposures and processing conditions while trying to connect what we see on the finished plate with what is actually happening inside the emulsion. There is a long history of photographic chemistry and established mechanisms that give us a framework for interpreting these effects, but a real photographic emulsion is a complicated system in which dissolution, diffusion, reduction, nucleation, particle growth, fog formation and optical scattering can all be influenced by the same seemingly minor change.

Rather than treating a successful formula as a black box add a certain amount of chemical X and something beautiful happens we want to understand why it happens. Why does one concentration produce dense black silver while another gives brilliant reflective highlights? What determines whether silver develops into many small structures or accumulates into fewer larger ones? How much of the final behaviour is already determined when we manufacture the emulsion, and how much can be controlled later through exposure and processing? At what point does useful silver transport become excessive dissolution? These are questions we are continuing to explore, and as we learn more we intend to share those experiments as well including the failures, because those often tell us as much about the material as the successful plates do.

For darkroom freaks, this is perhaps one of the most satisfying things about working with photographic plates. What appears in the tray is the visible consequence of an enormous number of events happening at a scale we cannot see: photons creating latent-image centres, silver species leaving crystal lattices, complexes forming and diffusing, atoms being reduced and particles growing into new structures. Eventually those structures interact with visible light strongly enough for us to see the result. What our eyes interpret as a luminous, almost white positive can therefore be made from the very same element responsible for the deepest black in a conventional negative.

It is still silver. The difference is what we have persuaded that silver to become.
