KEY FEATURES OF THE V2:
- Completely new loading system without a flap? The Zebra 4×5 Dry Plate Holder V2 features a cutting-edge loading system that eliminates the need for flaps. Instead of flaps, it employs a unique mechanism for seamless plate insertion and removal.
- Effortless Plate Insertion: To insert a plate, simply push one edge of the plate into the top ledge, compressing the spring. Once the plate is pushed inward and the pressure on the spring is released, the plate smoothly settles into its optimal position, requiring minimal effort on the operator’s part.
- Easy Plate Removal: Removing an exposed plate is just as straightforward. By pressing the edge of the plate against the bottom recess and lifting it with a finger, the plate easily slides out, ensuring a hassle-free process.
- Enhanced Exposure Area: The new loading system permits the plate to be held at its ends only, allowing the entire width of the plate to be exposed. This design improvement increases the image area by up to 5% compared to the previous version (V1).

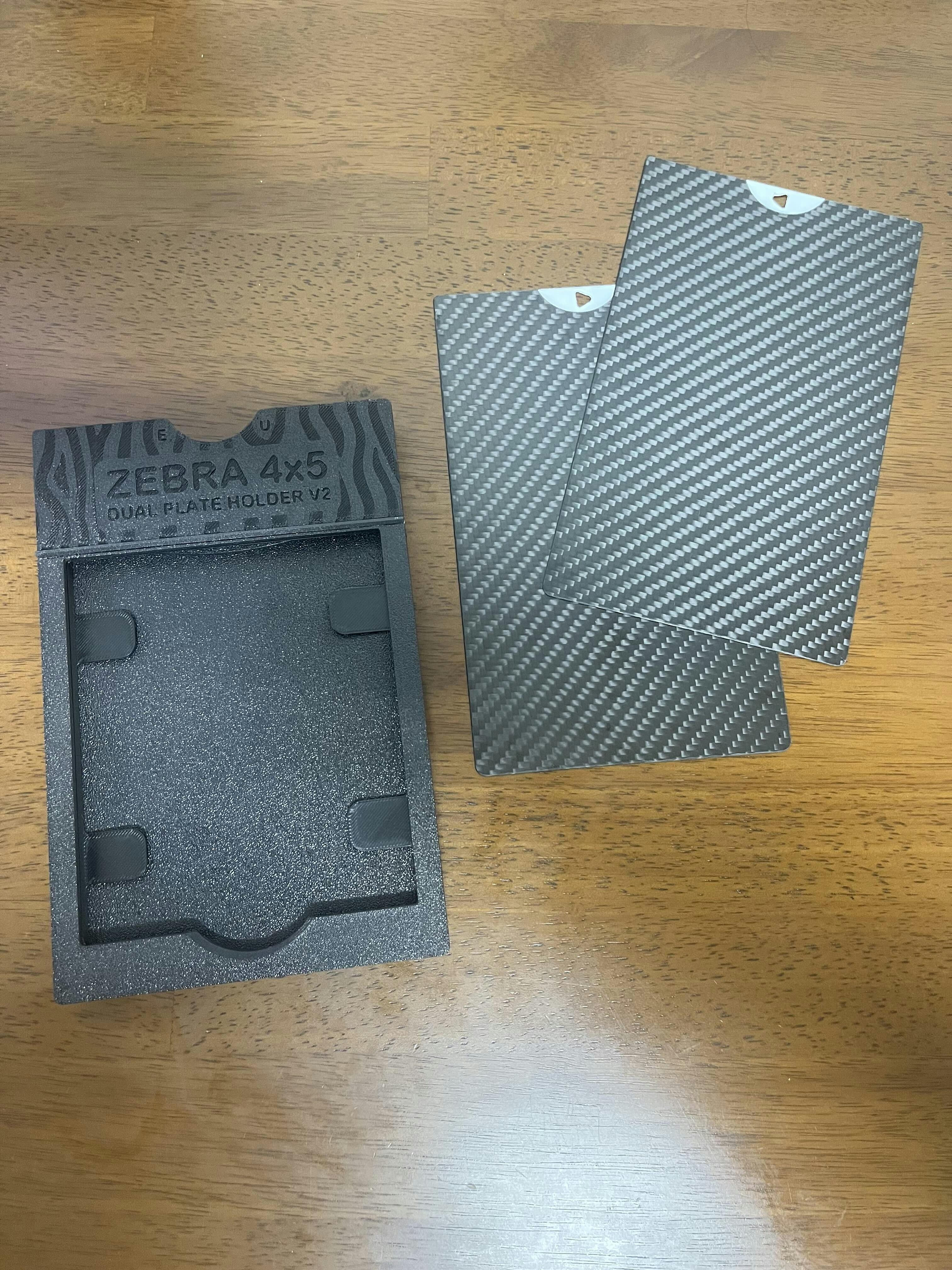

- Ultra Lightweight and Compact Design: This Zebra 4×5 Dry Plate Holder V2 is renowned for its lightweight construction, making it one of the lightest options available on the market (190g). It incorporates carbon fiber dark slides that exhibit minimal flex and do not sag. Its compact design provides comprehensive protection for the plate and slider from all angles.
- Exposure Indicators: The holder includes exposed and unexposed indicators on both the body and the slider, ensuring a reduction in failed exposures.

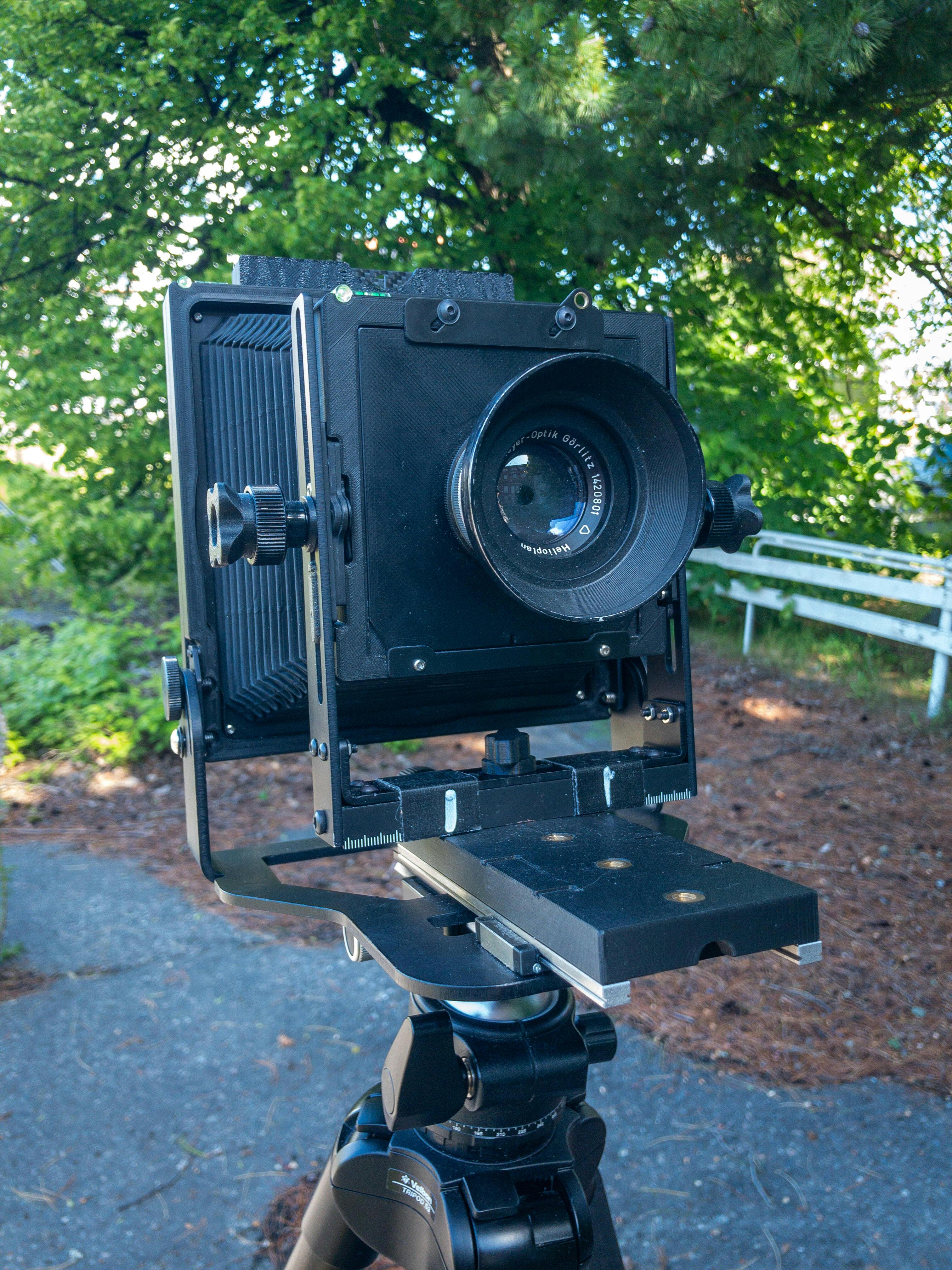

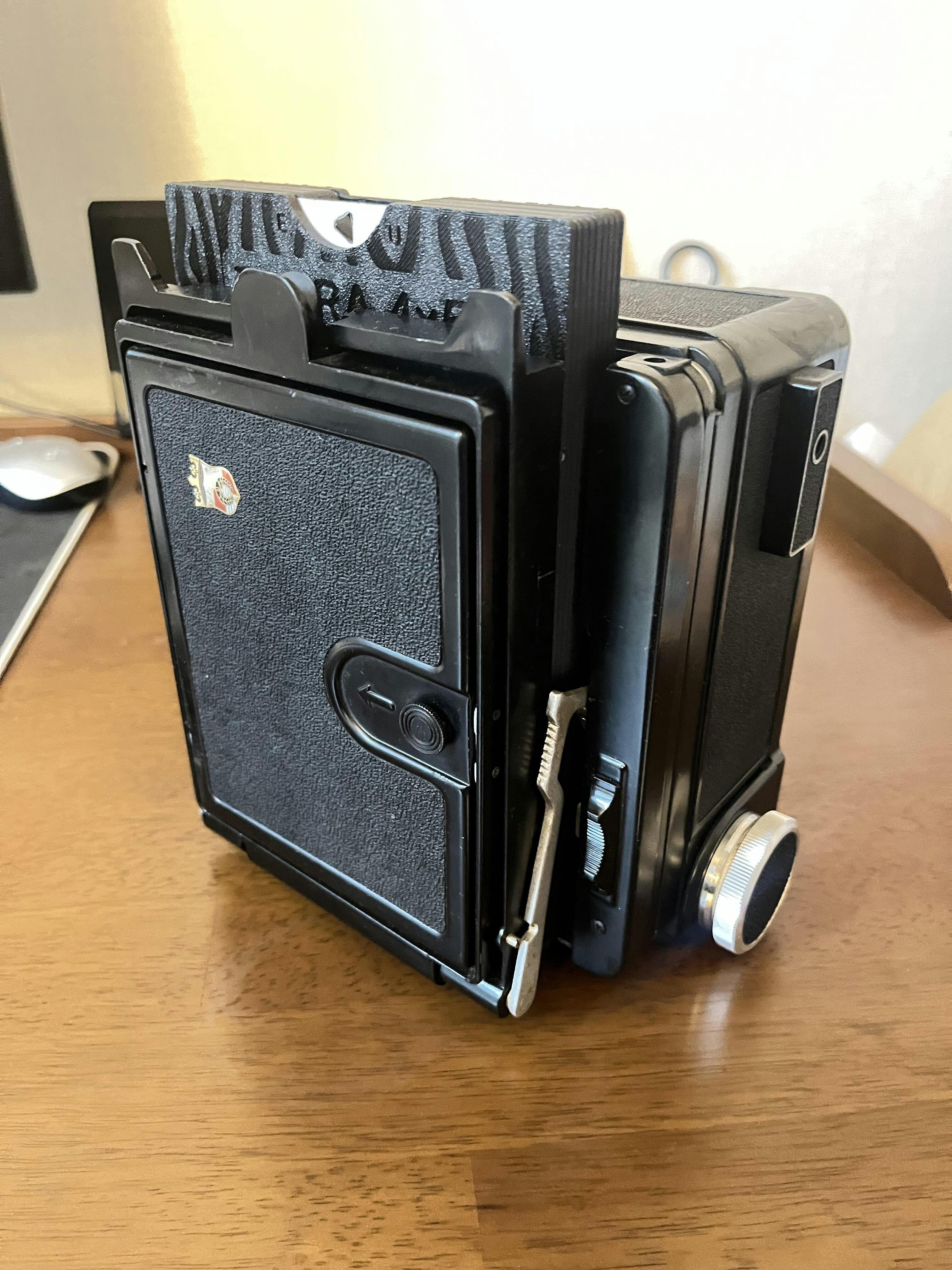

- ANSI Standards Compatibility: Built in accordance with ANSI standards, this holder is designed to fit most 4×5 cameras, featuring external dimensions of 183.7x120x18.6mm (Length x Width x Thickness).
- Versatile Plate Compatibility: The Zebra 4×5 Dry Plate Holder V2 accommodates a range of plate types, including glass plates, tin plates, and film. Thanks to the innovative spring loading system, plates are consistently positioned in the ideal focal plane, regardless of their thickness, which can range from 0.2 to 2mm.
- Film Compatibility: With a special anodised aluminium FILM carrier you are able to load two sheets of photographic film for added versatility.
- Plate Size: The ideal plate size for this holder is 100x126mm, with a maximum plate size of 102x127mm, making it suitable for true 4×5 inch plates as well.
